GN Solids Control is a top manufacturer of Horizontal Directional Drilling(HDD) Mud Equipment/HDD Mud Recycling System.GN drilling mud recycling system has been applied in many countries for HDD and CBM drilling operation.Especially popular in Australia ,Indonesia, India etc.With GN Solids America branch and GN Australia Partner, GN provide mud recycling system service and spares from Beijing, Houston, and Brisbane.

Features of GN HDD CBM  Mud Recycling Equipments

• Complete line Mud System: GNMS-200GPM / GNMS-400GPM / GNMS-600 GPM / GNMS-800GPM / GN1000 GPM Self-Contained Mud Recycling System and Customized capacity mud system.
• Cost Effective Equipments integration:Complete drilling mud equipments from a single source-GN Solids Control Factory.
• Fast moved compact system:Small footprint design with fast connection for removable parts and most parts fixed while traveling meet transport regulation.
• Assured customer service:We can send our experienced engineers for installation,and training up customer engineers.
• Mud Tanks Flexible Options:Skid Mounted or Trailer Mounted or Hydraulic Jack Up mud recycling Tanks available for your options.

Configurations of GN drilling mud recycling system

• Mud Recycling Tank, drilling mud mixing tank with attachments like walkways, handrails, mud clean gate.
• Shale Shaker for first phase mud recycling equipment of solids upper 100 microns.
• Desander for the second mud cleaning of separation solids uppper  50 microns.
• Desilter is the third phase mud recycling equipment of separation solids upper to 20 microns.
• Decanter Centrifuges is the fourth phase mud recycling equimpent for separation of solids uppper 2 to 5 microns.
• Mud Agitators, Mud guns, Mud mixing pumps,and drilling mud transfer pumps for the mud recycling unit.

Besides the standard drilling mud recycling system, GN also provide customized mud recycling system accordling to drilling contractors applications.

For any case in detail, please find Michael for a prompt reply.

Whatsapp: + 86 178 0179 9913

GN Solids Control provide the full line of drilling waste management equipment for the pitless drilling, with GN Solids Control products, operators is able to run the closed loop mud circulation system to reduce the cost for drilling waste handling.

• GN Drilling Cuttings Management System is a packages system for the drilling rig to dry the OBM, SBM or WBM drilling cuttings and recycling the drilling fluids after cleaning by the decanter centrifuge.
• GN Vertical Cuttings Dryer is a components for the cuttings drying by centrifugal G force.
• Dewatering Unit provides a process of chemically enhanced configuration to remove the fine solids less than 5 microns from the water based drilling fluids.In a result to reduce the waste based mud waste.
• GN high G drying shaker is a simple and econonic way to reduce the fluids on the drilling cuttings.
• GN Waste decanter centrifuge is to separate the fine solids in the drilling waste.
• GN Screw Conveyor is the product for transfer the drilling cuttings or drilling waste.
• Centrifuge feed pump include the screw pump and vertical centrifugal slurry pump for different applications.
• Drilling Cuttings Transfer Pump is a vacuum pump for transfer drilling cuttings and waste.

For more information about drilling waste management.

• Videos for the drilling waste management system
• Drilling Waste Management Centrifuge for EMEC
• Drilling Cuttings Drying Equipment for Nabors Industries Project
• Drilling Cuttings Management System for West Africa
• TOP 5 Largest Drilling Waste Management Companies list

Hebei GN Solids Control Co., Ltd. has specialized in solids control and waste management equipment since 2008. GN stands as one of the largest manufacturers of solids control equipment globally. We operate three factories spanning a total area of 110,000 square meters in China and maintain branch offices with service capabilities in both the United States and Australia. Designated as a National High-Tech Enterprise, GN boasts a robust management system. Since 2010, we have consecutively held the American API Quality Management System Certification for 15 years and maintained China Classification Society certifications for ISO9001, ISO14001, and ISO45001 over many years.

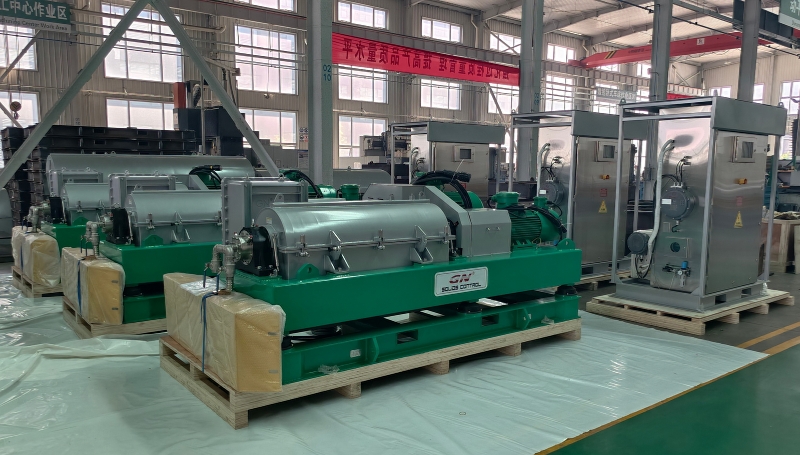

GN design and manufacture both decanter centrifuge and three-phase centrifuge for industry separation. Solid bowl decanter centrifuges have been operating according to the same basic principle since the 19th Century.

GN design specific centrifuges according to specific separation tasks and the use of resilient, high-quality materials have improved the performance of the centrifuges.

Moreover, GN owns a branch for design PLC and electrical control system; this gives GN advantages in electrical components for measuring and control technology. The performance and availability of the decanter centrifuge or three-phase centrifuges are significantly improved by the control system..

Main Application of GN Industry Centrifuges

• Dewatering sludges / mud and suspensions
• Thickening sludges or mud
• Clarifying different type liquids
• Separating 3-phase mixtures, i.e. two immiscible fluid phases and a solid phase
• Classifying solids in a wet suspension by grain size
• Separation of solids according to various densities

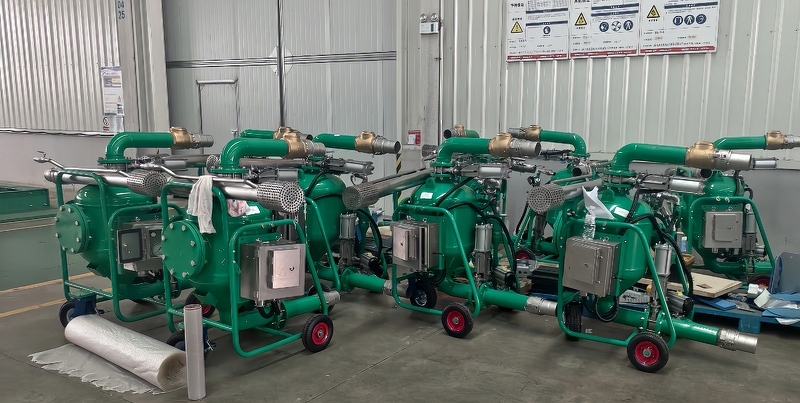

Sludge vacuum pump, also named as solids transfer pump. It is a pneumatic slurry transfer vacuum pump for liquid ,slurry, and solids transfer. Since it’s a high vacuum loading solids transfer pump, so it can be used at tough environmental for solids or sludge transfer with high working performance and less maintenance. The pump can transfer material with high gravity and high density, with dry solids material or slurry with solids content max. up to 80%.

For any case drawing in detail, find Michael to have a prompt reply.

Whatsapp: + 86 178 0179 9913
